Grid inverters - Main interface

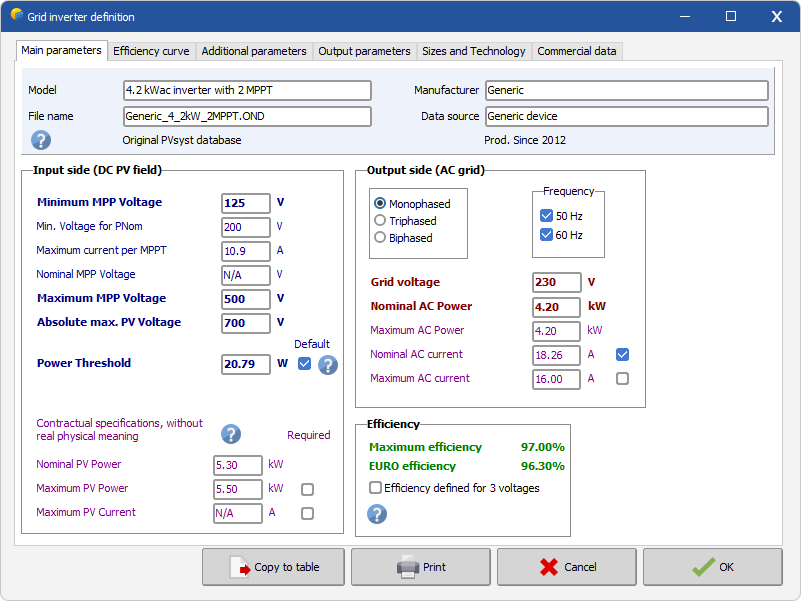

Grid inverters parameter are defined through a 6-sheet dialog:
| Sheet | Description |
|---|---|
| Main Parameters | the identifiers and the fundamental properties of a specific inverter type, |
| Efficiency curve | defines the detailed operating efficiency behavior, |
| Additional Parameters properties and specificities of the inverter, | |
| Output parameters | Power factor and Pnom as function of temperature |
| Size and others | physical sizes and weight, as well as comments about technology, |
| Commercial data |
The model used by the simulation is fully described in :
